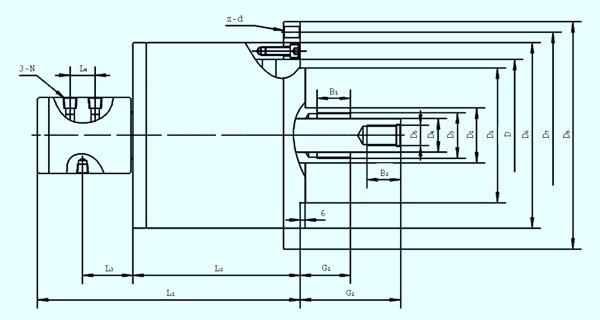

规格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
D7
|
D8
|
G1
|
G2
|
z-d
|
B1
|
B2
|
L1
|
L2
|
L3
|
L4
|
N
|
||
|
max
|
min
|
Max
|
min
|
||||||||||||||||||
|
PSS130
|
130
|
105
|
50
|
M42×1.5
|
28
|
M16
|
170
|
145
|
-
|
46
|
21
|
88
|
63
|
6×M10
|
30
|
30
|
280
|
165
|
61.5
|
26
|
Rc3/8
|
|
PSS180
|
180
|
160
|
65
|
M52×2
|
40
|
M24
|
220
|
245
|
270
|
60
|
20
|
120
|
80
|
8-Φ3.5
|
40
|
40
|
315
|
200
|
60
|
30
|
Rc3/8
|
■性能参数 Characteristic Parameters
|
规格
Size
|
前缸活塞有效面积㎝2
Piston effective area
|
后缸活塞有效面积㎝2
Piston effective area
|
活塞行程
L max
Piston stroke
|
最大使用压力MPa
Max.acting pressure
|
极限转速r/min
Max. speed
|
推荐动力卡盘
Rec. power chuck
|
净重Kg
Net WT
|
|
PSS130
|
推侧push side125
|
推侧pull side 34
|
25
|
4.0
|
5000
|
K56 200
|
23
|
|
拉侧pull side 111
|
拉侧push side27
|
||||||
|
PSS180
|
推侧push side241
|
推侧pull side 254
|
40
|
4.0
|
1000
|
专用卡盘
|
45
|
|
拉侧pull side 226
|
拉侧push side241
|
