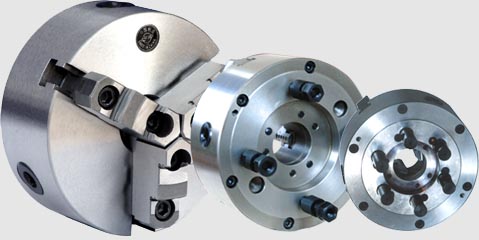

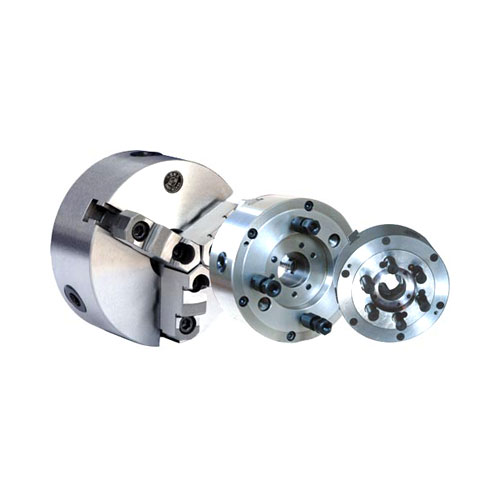

■特点：
☆与机床主轴直接连接，刚性好，精度高。
☆短锥连接形式有A1、A2、C、D四种，短锥连接参数符合GB/T5900.1－GB/T5900.3（ISO702）标准。
☆卡爪结构形式分为整体爪、A型分离爪、C型分离爪、D型分离爪、E型分离爪。
☆按盘体材质分为：灰铸铁（K11口/口）、球墨铸铁（K11口/口（GT））、钢盘体（K11口/口（G））三种，球墨铸铁和钢盘体适应较高转速。
■Specificity:
☆Mounted directly with the machine spindle nose and with nice rigidity and high accuracy.
☆The chuck mounting types are classified as form A1、A2、C、D.The connecting dimensions conform to GB/T5900.1－GB/T5900.3（ISO702）standards.
☆The structure types of jaws are classified as one-piece jaws ,two-piece jaws for form A 、form C、form D and form E.
☆The body materials are classified as gray case iron（K11口/口）,nodular cast iron（K11口/口（GT）） and steel（K11口/口（G））, the body of nodular cast iron and steel is suitable for higher rotation-speed.

■短锥卡盘性能参数 Short-taper Chucks Characteristic Parameters

卡盘规格 Size	最大输入扭矩Nm Max. input torque	极限转速r/min Max.speed
卡盘规格 Size	最大输入扭矩Nm Max. input torque	灰铸铁 Gray cast iron	球墨铸铁 Nodular cast iron	钢 Steel
125	100	3000	3800	4900
160	160	2500	3000	3800
200	250	2000	2500	3000
250	320	1600	2000	2400
315 325	400	1200	1500	1900
380 400	500	1000	1200	1500
500	630	800	1000	1200
630	800	600	800	1000
800	1000	500	600	800
1000	1200	400	500	600
1250	1300	320	400	500

■短锥卡盘产品规格与主轴端部配套选择一览表Selection Table for No. of Spindle Noses to Short –taper Chucks

卡盘规格 Size	系列 Series No.
	Ⅰ			Ⅱ		Ⅲ
	连接形式 Mtg. form
	A₁	A₂	C、D	A₁	C、D	A₁	A₂	C、D
	主轴头号 Short-taper No.
125	—	—	3	—	4	—	—	—
160	—	—	4	—	5	—	—	3
200	5	—	5	6	6	—	4	4
250	6	—	6	8	8	5	5	5
315	8	—	8	—	11	6	6	6
400	11	—	11	—	15	8	8	8
500	15	—	15	—	—	11	11	11
630	15	15	15	—	20	—	11	11
800	-	20	-	-	-	-	-	-
1000	-	20	-	-	-	-	-	-
1250	-	28	-	-	-	-	-	-
