产品：K11，K11（QT），K11（G），K11口/口，K15
产品特性:
■特点：

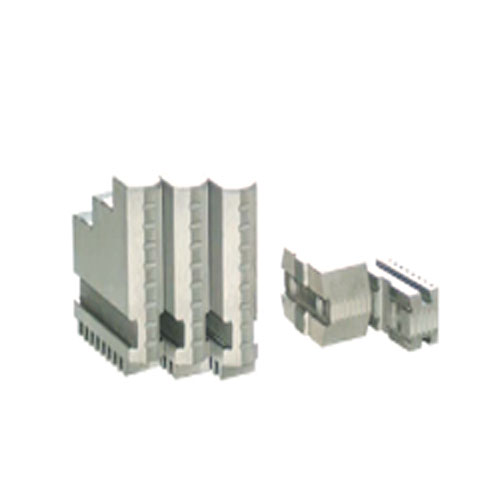

☆卡爪分为：整体爪，A型、D型、C型、E型分离爪。
☆可按用户要求提供各型硬卡爪。
■Specificity:
☆Hard jaws include one-piece ones and two-piece ones for form A、D、C、E.
☆All kinds of hard jaws can be provided as the request of customers.
产品详情

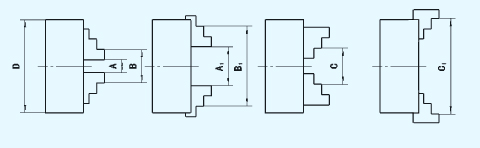

■夹持范围 Clamping Range
|
卡盘规格
Size
|
正爪Internal Jaw
|
反爪 External Jaw
|
|
夹紧范围
Clamping range
|
撑紧范围
Jamming range
|
夹紧范围
Clamping range
|
|
A-A1
|
B-B1
|
C-C1
|
|
80
|
2-22
|
25-70
|
22-63
|
|
100
|
2-30
|
30-90
|
30-80
|
|
125
|
2.5-40
|
38-125
|
38-110
|
|
130
|
3-40
|
40-130
|
40-120
|
|
160
|
3-55
|
50-160
|
55-145
|
|
165
|
4-60
|
52-165
|
55-150
|
|
190
|
4-70
|
65-190
|
65-190
|
|
200
|
4-85
|
65-200
|
65-200
|
|
240
|
6-100
|
80-250
|
90-250
|
|
250
|
6-110
|
80-250
|
90-250
|
|
315
|
10-140
|
95-315
|
100-315
|
|
320
|
11.5-145
|
95-320
|
110-320
|
|
325
|
11.5-165
|
95-350
|
110-340
|
|
380
|
11.5-210
|
95-400
|
110-400
|
|
400
|
15-210
|
120-400
|
120-400
|
|
500
|
25-280
|
150-500
|
150-500
|
|
630
|
50-350
|
170-630
|
170-630
|
|
800
|
120-450
|
300-800
|
300-800
|
|
1000
|
250-520
|
350-1000
|
400-1000
|
|
1250
|
320-600
|
420-1250
|
470-1250
|
■整体爪 One-piece Jaws
|
规格
Size
|
80
|
100
|
125
|
130
|
160
|
165
|
190
|
200
|
240
|
250
|
315、320
325、380
|
400
|
500
|
630
|
|
L
|
32
|
42
|
56
|
56
|
70
|
70
|
72
|
85
|
105
|
105
|
130
|
130
|
172
|
210
|
|
B
|
12
|
15
|
16
|
16
|
18.5
|
18.5
|
22
|
22
|
27
|
27
|
36
|
36
|
45
|
50
|
|
H
|
33
|
38
|
45
|
45
|
54
|
54
|
57
|
61
|
69
|
69
|
91
|
91
|
110
|
127
|
|
h
|
6.5
|
7
|
9
|
9
|
12
|
12
|
12
|
12
|
12
|
12
|
18
|
18
|
22
|
22
|
※包括正爪和反爪各一副。
※The chuck with one-piece jaws is provided with each set of internal and external ones.
■A、D型分离爪 Two-piece Jaws for Form A,D
|
规格
Size
|
160
|
200
|
250
|
315
|
325
|
380
|
400
|
500
|
630
|
800
|
|
L
|
67
|
80
|
95
|
108
|
108
|
130
|
130
|
130
|
132
|
132
|
145
|
|
L1
|
29
|
34.9
|
39.7
|
47.6
|
47.6
|
58
|
58
|
58
|
57
|
59
|
64
|
|
B
|
25
|
30
|
36
|
45
|
45
|
45
|
45
|
45
|
54
|
60
|
|
H
|
41
|
45
|
53
|
61
|
61
|
70
|
70
|
70
|
82
|
82
|
86
|
|
h
|
9
|
10.5
|
13.5
|
17.5
|
17.5
|
17
|
17
|
17
|
22
|
22
|
22
|
|
a
|
12.675
|
12.675
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
|
b
|
7.94
|
7.94
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
|
E
|
19
|
22.2
|
27
|
31.75
|
31.75
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
|
t
|
3
|
3
|
3
|
3
|
3
|
6
|
6
|
6
|
6
|
6
|
6
|
|
t1
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
4
|
|
z-d
|
2-11
|
2-11
|
2-13
|
2-13
|
2-13
|
2-18
|
2-18
|
2-18
|
2-22
|
2-22
|
2-22
|
|
规格
Size
|
160
|
200
|
250
|
315
|
325
|
380
|
400
|
500
|
630
|
800
|
|
L
|
64
|
80
|
98
|
110
|
110
|
114
|
114
|
114
|
152
|
210
|
260
|
|
L1
|
29
|
34.9
|
39.7
|
47.6
|
47.6
|
47.5
|
47.5
|
47.5
|
47.4
|
49.9
|
60
|
|
B
|
20
|
22
|
27
|
36
|
36
|
36
|
36
|
45
|
50
|
60
|
|
H
|
33
|
35
|
38
|
42
|
42
|
46
|
46
|
46
|
55
|
60
|
63
|
|
a
|
12.675
|
12.675
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
19.025
|
|
b
|
7.94
|
7.94
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
|
e
|
19
|
22.2
|
27
|
31.75
|
31.75
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
|
t
|
4
|
4.2
|
4.2
|
4.2
|
4.2
|
7
|
7
|
7
|
7
|
7
|
7
|
|
t1
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|
z-d
|
2-M10
|
2-M10
|
2-M12
|
3-M12
|
3-M12
|
3-M16
|
3-M16
|
3-M16
|
4-M20
|
5-M20
|
6-M20
|
产品备注
※包括顶爪和基爪两部分。规格为325、380的A型分离爪和所有规格的D型分离爪，基爪不带夹持弧。
※The jaws are composed of top jaws and master jaws.Master jaws for form A size 325、380 and form D without clamping arc.
|
