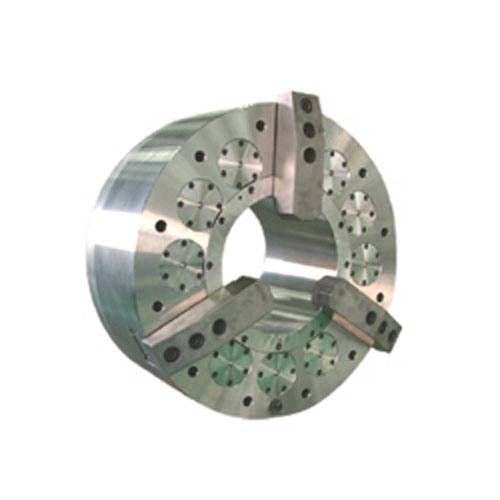

产品：K59D
产品特性:
■特点：
☆短圆柱连接形式。
☆前置式卡盘气动松开，碟簧夹紧，卡爪大行程。
☆机床前后可各配一台卡盘。
☆主要适用于管子车床。
☆断开气源方可工作。
■Specificity:
☆Short-cylindrical center mounting.
☆The chucks mounted in front and loosing by the air actuated ,the spring clamp,large stroke jaw.
☆A set of chuck can be equipped in front or rear of the machine.
☆Suitable fr the pipe lathes.
☆The chucks just work when switching off the air source.
产品详情

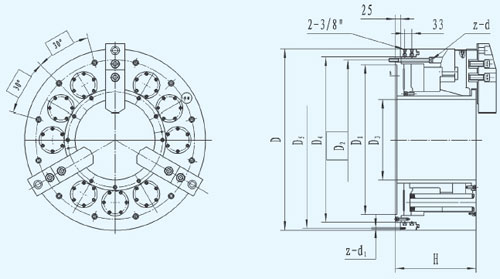

■尺寸Dimension Parameters
|
规格D
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
H
|
h
|
z-d
|
z-d1
|
|
850
|
700
|
745
|
375
|
775
|
830
|
380
|
8
|
12-M16
|
6-M8
|
■性能参数Characteristic Parameters
|
规格D
Size
|
楔心套行程L
Lmax Piston stroke
|
单爪行程t Jaw stroke
|
最大夹紧力kN
Max. gripping force
|
极限转速r/min
Max. speed
|
夹紧范围
（标准爪）
Clamping range
|
净重kg
Net WT.
|
|
850
|
60
|
15+12
|
170
|
700
|
150-350
|
1000
|
|
