产品：K48
产品特性:
■特点：
☆ 与机床主轴直接连接，刚性好，精度高。
☆零件被卡紧并后拉，夹紧力大。
☆可卡住10°的锥体，卡爪可左右自由摆动5°。
☆适用于加工铸造和锻造零件。
■Specificity:
☆The chucks can be directly connected to the spindle noses of the machine tools,with nice rigidity and high accuracy.
☆Workpieces be clamped and pull back , large gripping force.
☆Can clamp the taper body of 10° the jaw can pendulum 5 °freely.
☆Suitable for processing castings and forgings.
产品详情

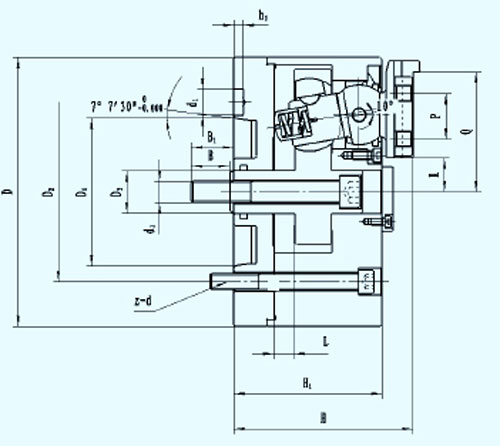

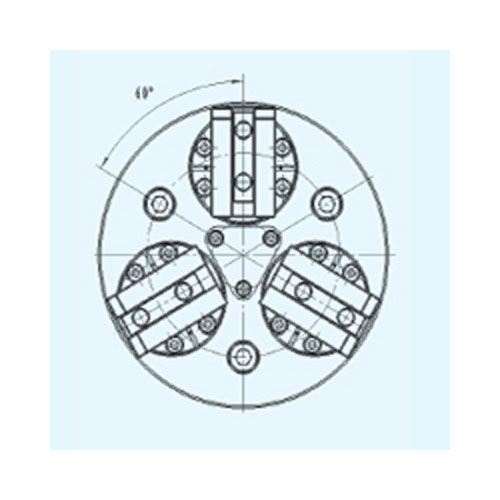

■尺寸参数 Dimension Parameters
|
规格
Size
|
D
|
D1
|
D2
|
D3
|
d1
|
d2
|
H1
|
H
|
h1
|
p
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
160
|
160
|
82.563
|
140.8
|
30.16
|
16.3
|
M16
|
85.3
|
104.6
|
6.5
|
24
|
73.15
|
22.2
|
20.3
|
30.8
|
28.5
|
42.7
|
31.5
|
3-M10
|
|
200
|
200
|
106.375
|
133.4
|
31.75
|
19.5
|
M16
|
110
|
133
|
6.5
|
34
|
88.95
|
25.35
|
25.15
|
35
|
28.5
|
45.7
|
31.5
|
3-M12
|
|
250
|
254
|
139.719
|
171.4
|
41.27
|
24.2
|
M20
|
119
|
148
|
8
|
44
|
112.7
|
30.3
|
35.7
|
45.5
|
35
|
57.5
|
38.5
|
3-M16
|
|
315
|
315
|
196.869
|
235
|
41.27
|
29.4
|
M20
|
119
|
148
|
10
|
44
|
133.2
|
50.8
|
50.5
|
59
|
35
|
57.5
|
38.5
|
3-M20
|
■性能参数 Characteristic Parameters
|
规格
Size
|
楔心套行程
Lmax
Wedge stroke
|
爪行程t
（直径）
Jaw stroke
(Dia.)
|
许用推拉力kN
Max. draw bar pull
|
最大夹紧力kN
Max. gripping force
|
极限转速r/min
Max. speed
|
夹紧范围
Clamping range
|
推荐配套油缸
Matching cylinder
|
净重kg
Net WT.
|
|
160
|
11.2
|
7.9
|
27
|
81
|
4000
|
12.7-120
|
P24105 P22100
|
18
|
|
200
|
14.2
|
9.5
|
36
|
108
|
3500
|
16-152
|
P24 P22125
|
27
|
|
250
|
19
|
12.7
|
45
|
135
|
3000
|
50-203
|
P24 P22125
|
45
|
|
315
|
19
|
12.7
|
45
|
162
|
2500
|
63-240
|
P24 P22160
|
67.5
|
|
